HELI Reach Truck Seat On

Reach Stacker  HELI  adalah  merk Forklift nomor 1 di China dan nomor 7 di Top ranking 20 besar jajaran Forklift dunia.
Di semua lini kegiatan industri, tentunya memerlukan alat angkat untuk mempermudah kegiatan loading-unloading  sehingga operasional pekerjaan tersebut menjadi Efektif, Efisien, Aplikatif  dan yang lebih utama lagi, pembelian equipment tersebut harus dengan harga yang  kompetitif.

HELI Stacker

Reach Truck Stand on Type
Bagian klasifikasi dari :
Class I  merupakan “Electric Motor Rider Truck.”

1. Reach Truck Seat On Type 1,6 Ton, acid
Reach Truck Kapasitas  1,6 Ton

Model                 : CQD16-GC2Sz
Drive  Motor       : Electric AC
Controller            : Mosffet
Operator             : Seat On

Kapasitas            : 1600 Kg
Battery Capacity  : 48 V/ 420 Ah
Type Battery       : Acid Battery
Tire                    : Poly Urethane

Dimensi              : P X L X T
Dimensi (P)          : 2997 mm , With Fork
Dimensi (L)          : 1120 mm
Dimensi (T)         : 2314 mm- Mast Height Lowered

Dimensi  Garpu Std      p x l x t      : 1150 mm x 122 mm x 40 mm
Maximum Fork Height Std             : 4600 mm
Aisle Width Pallet 1000x 1200        : 2794 mm

2. Reach Truck Seat On Type 2 Ton, acid
Reach Truck Kapasitas  2 Ton
Model                 : CQD20-GC2S
Drive  Motor       : Electric AC
Controller            : Mosffet
Operator             : Seat On

Kapasitas            : 2000 Kg
Battery Capacity  : 48 V/ 500 Ah
Type Battery       : Acid Battery
Tire                    : Poly Urethane

Dimensi              : P X L X T
Dimensi (P)          : 3092 mm , With Fork
Dimensi (L)          : 1120 mm
Dimensi (T)         : 2314 mm- Mast Height Lowered

Dimensi  Garpu Std      p x l x t      : 1150 mm x 122 mm x 40 mm
Maximum Fork Height Std             : 4600 mm
Aisle Width Pallet 1000x 1200        : 2810 mm
Aisle Width Pallet 1200x 1200        : 2965 mm

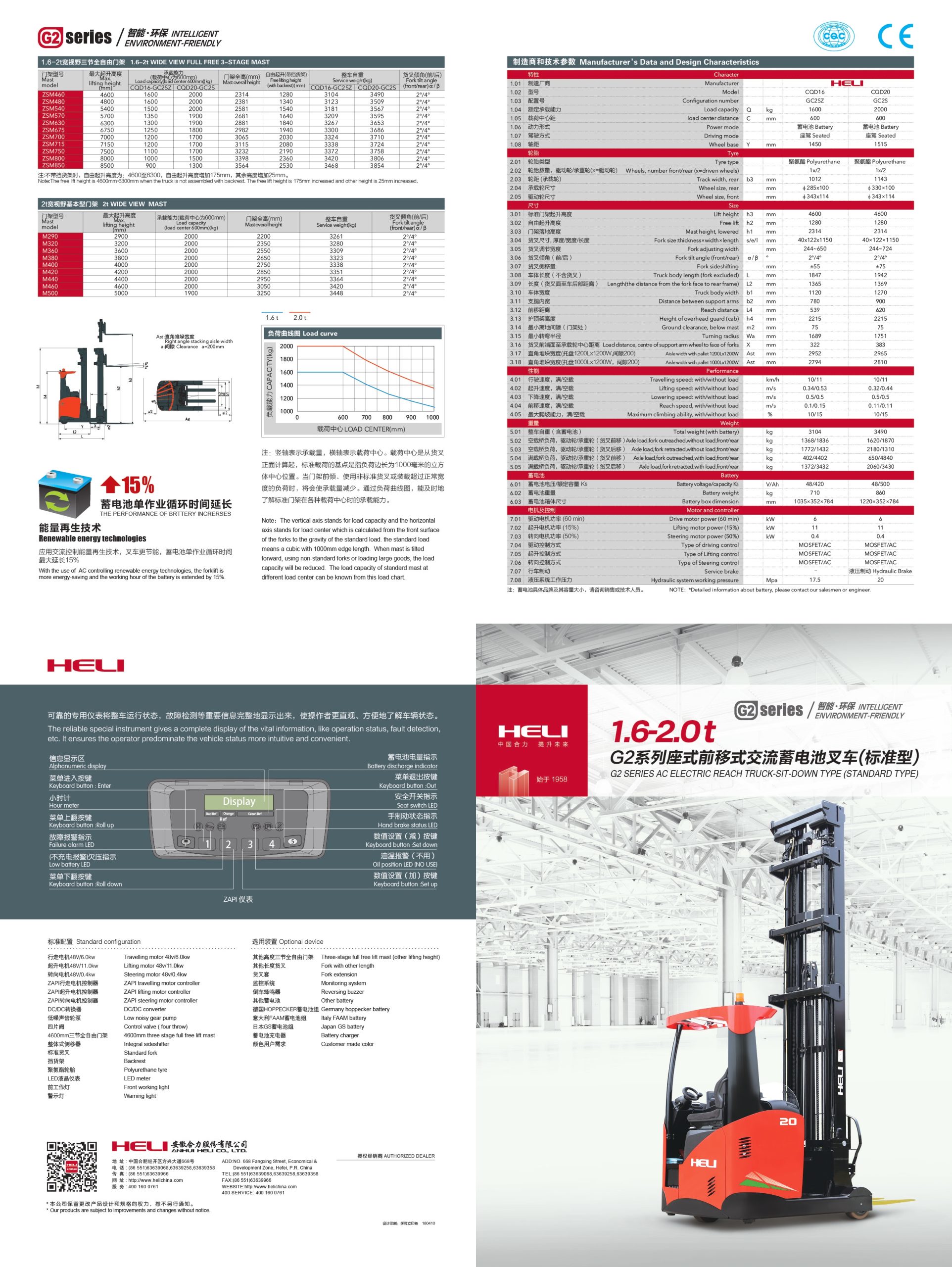

3. Reach Truck Seat on 1,6-2 T Acid

Model                 : CQD20-GC2S
Drive  Motor       : Electric AC
Controller            : Mosffet
Operator             : Seat On

Kapasitas            : 2000 Kg
Battery Capacity  : 80 V/ 272 Ah
Type Battery       : Lithium Battery
Tire                    : Poly Urethane

Dimensi              : P X L X T
Dimensi (P)          : 3092 mm , With Fork
Dimensi (L)          : 1270 mm
Dimensi (T)         : 2314 mm- Mast Height Lowered

Dimensi  Garpu Std      p x l x t      : 1150 mm x 122 mm x 40 mm
Maximum Fork Height Std             : 4600 mm
Aisle Width Pallet 1000x 1200        : 2777 mm
Aisle Width Pallet 1200x 1200        : 2925 mm
